Discover the essential parts that determine the performance and durability of an auto door closer. Whether you’re sourcing, selling, or installing, understanding these components helps you make informed decisions.

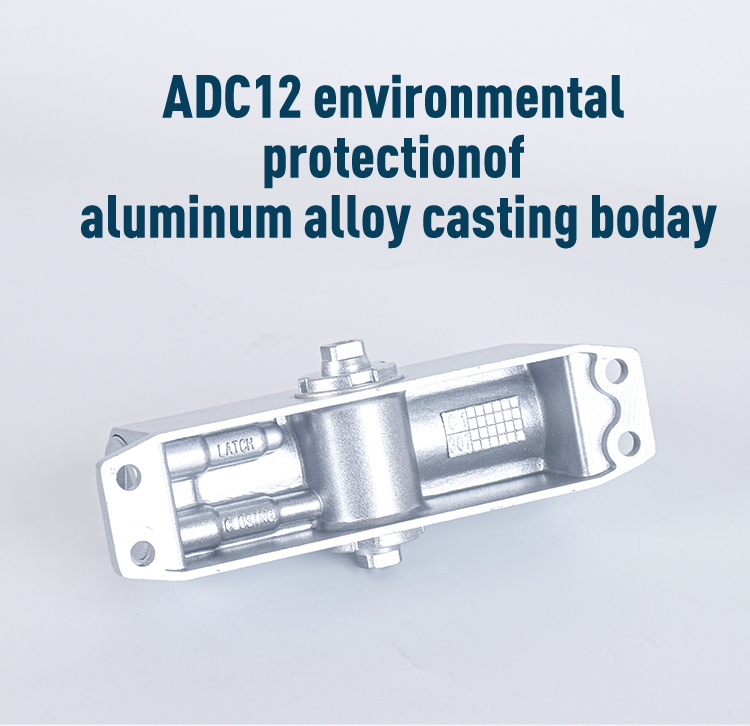

1. Main Body Housing (Material and Finish)
The exterior casing protects all internal components from dust, moisture, and physical damage. It must be strong enough to withstand daily mechanical stress.
- Material: High-quality auto door closers typically use ADC12 aluminum alloy, known for its excellent strength-to-weight ratio and corrosion resistance. Some premium models may use zinc alloy or stainless steel for enhanced durability.
- Finish: The housing should be treated with an anodized coating or powder coating. This prevents rust and fading, especially important for outdoor or humid environments.
- Manufacturing quality: Look for a uniform surface, free of scratches, bubbles, or dents. Sharp edges or seams indicate poor casting or finishing, which may cause injuries or mechanical issues.
2. Precision Gear Mechanism
Inside the closer, the gear mechanism translates the spring’s energy into smooth door motion.
- The most reliable gear type is the rack-and-pinion system, which provides steady and controlled closing speed.
- Hardened steel gears are essential to prevent premature wear, ensuring the door closer can endure hundreds of thousands of cycles without degradation.
- Poorly machined or soft metal gears can cause noisy operation, uneven door movement, or failure under frequent use.
3. Hydraulic System: Oil and Seals
Hydraulics control the door’s closing speed and cushioning effect, providing safety and convenience.
- The hydraulic oil inside must maintain consistent viscosity in temperatures ranging from -40°C to 60°C to ensure stable performance in all climates.
- Double or triple O-ring seals prevent leaks that would reduce hydraulic pressure and cause the door to slam or fail to close.
- Quality sealing components are vital to prevent oil leakage, which not only affects performance but also causes maintenance headaches.
4. Spring Tension Assembly
The spring provides the actual force to close the door after it’s opened.
- Springs are made from heat-treated, high-tensile steel to retain elasticity and strength over millions of cycles.
- The spring force should be adjustable to accommodate different door weights and sizes. Standards like EN1154 grade closers (Grade 2 to 5) indicate suitable force ranges.
- An improperly sized spring causes operational issues: too weak, and the door won’t close properly; too strong, and the door is difficult to open, impacting user comfort.
5. Speed Control Valves
Speed control valves let you fine-tune how the door closes, enhancing safety and usability.
- There are typically two to four adjustable valves controlling:
- Closing speed: how fast the door moves from fully open to about 10° before closing.
- Latching speed: the final 10° to full closure to ensure the door shuts securely.
- Backcheck: resistance when the door is pushed open too hard, preventing damage.
- Delayed action (optional): slows closing to aid accessibility.
- Valves should be clearly marked and easy to adjust with a standard screwdriver.
6. Mounting Hardware: Plates and Screws
Durable mounting components ensure the closer remains securely fixed to the door and frame.
- Mounting plates should be made from thick zinc-coated steel or aluminum alloy, providing a solid base.
- Use hardened steel screws with reinforced threading to prevent loosening from repeated door operation.
- A quality door closer will include templates or installation guides for different mounting methods:
- Regular arm
- Parallel arm
- Top jamb
Incorrect or weak mounting leads to misalignment, noise, or the closer falling off.
Summary Checklist for Quality Auto Door Closers
| Component | Key Quality Indicators |
|---|---|
| Body Housing | Thick ADC12 or zinc alloy, smooth, rust-resistant finish |
| Gear Mechanism | Hardened steel, rack-and-pinion design, precise machining |
| Hydraulic System | Stable hydraulic oil, leak-proof multi O-ring seals |
| Spring Assembly | Heat-treated steel, adjustable force rating (EN1154) |
| Speed Control Valves | Multiple valves, easy adjustment, marked controls |
| Mounting Hardware | Thick zinc-coated steel/aluminum plates, strong screws |
Why Knowing These Components Matters
When sourcing or purchasing auto door closers, the price difference may seem minimal, but internal component quality makes a huge difference in durability and performance. Cheaper units often cut corners on gears, seals, or springs, leading to premature failure, frequent repairs, and unhappy customers.
For importers and distributors, understanding these technical details helps you select trustworthy manufacturers, request proper testing reports, and explain product advantages confidently to your clients.
